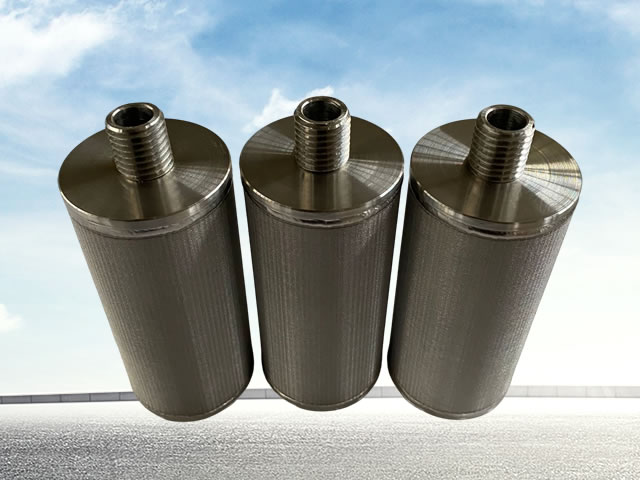

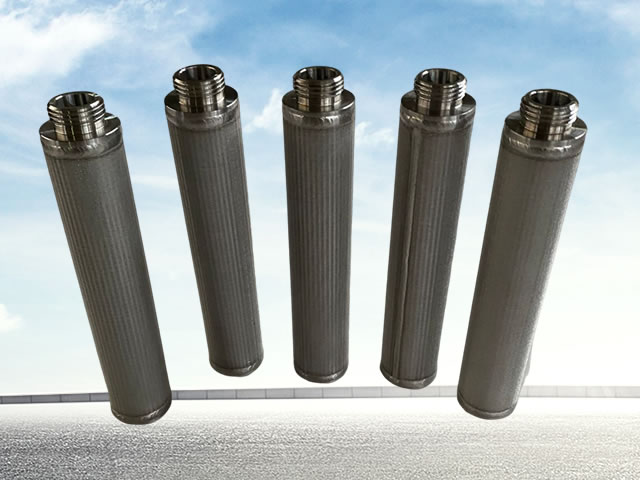

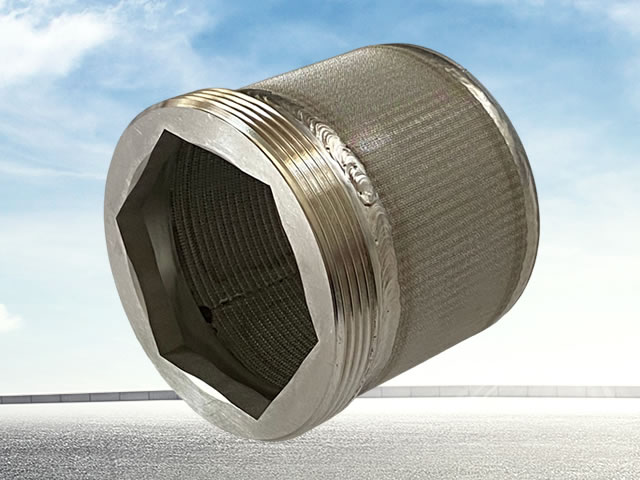

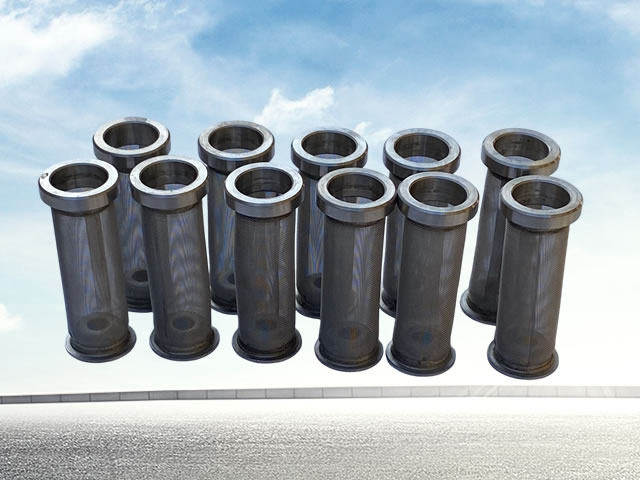

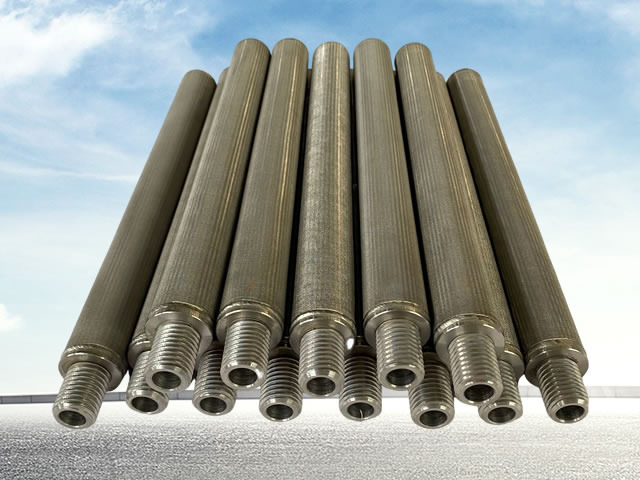

Cylindrical Filter Elements (CF)

Filter Media: sintered mesh
Sintered mesh filter is made of sintered mesh after cutting, precision welded sintered filter. The most important point of Sintered felt filter element is that a large number of high-precision welding is used. To ensure roundness and flat, Sintered wire mesh filter cartridge is sintered after using rolling seam welding process and the method of correction weld, it can make the overall look more beautiful.

Main filter medium of sintered filter elements is five-layer sintered wire cloth, filter rating is form 1 to 200 micron. Five-layer sintered wire cloth consists of five layers of stainless steel mesh, which are sintered together in vacuum.

Alloy: Stainless Steel, Duplex SS, Supper Duplex SS, Monel, Hastelloy, Inconel, FeCr Al, Fe3Al etc.

Advantage:
-Uniform hole, accurate filtration rate
-High hardness and good abrasion resistance
-Excellent resistance to erosion, heat and pressure

Specification:
-Filtration rate: 1-200μm
-Temperature: -50℃-800℃
-Diameter:14-800mm, Length:10-1200mm
-Aoshuai Filter dimension can be customized by your demands.

Application:
-Polyester
-Petrochemical, petroleum refining
-Pharmaceutical and food refining or cycling
-Drinking
-Catalytic recycling
