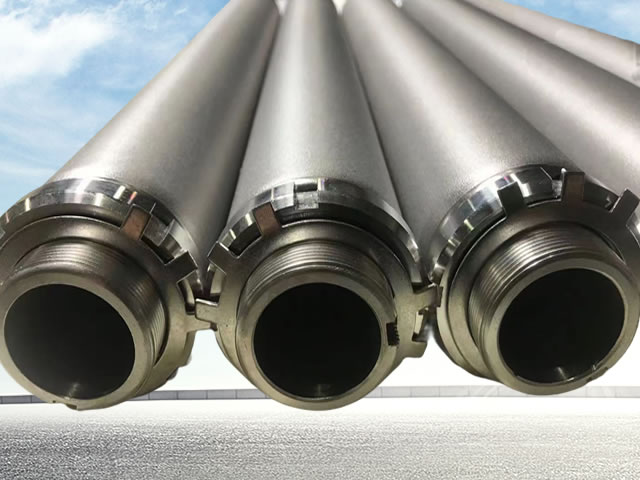

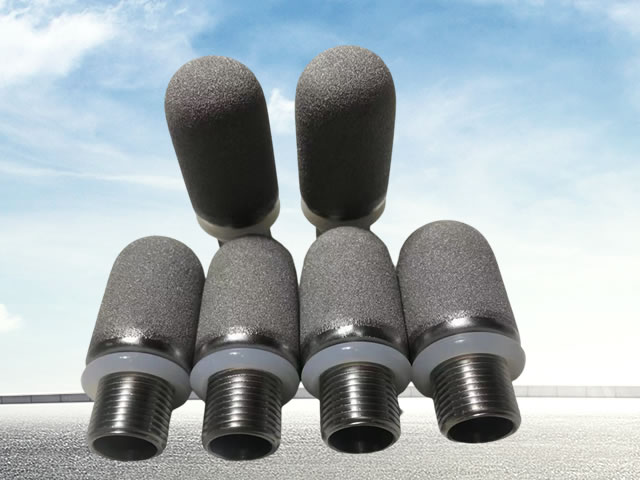

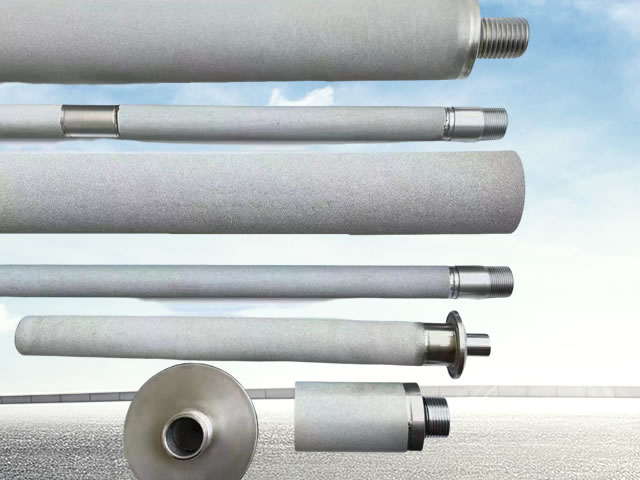

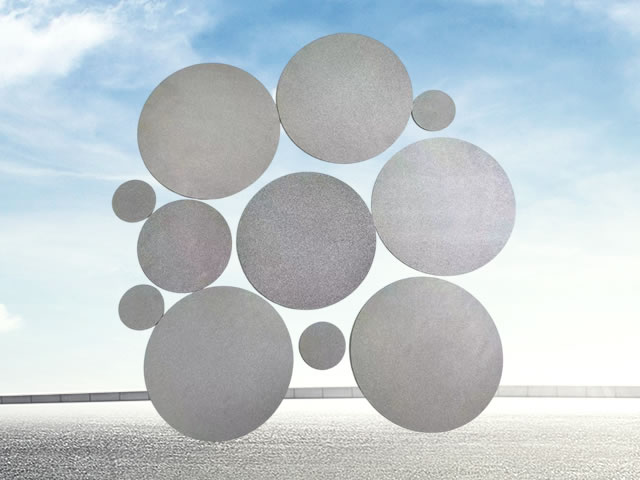

Sintered Powder Filter (SF)

Sintered Porous Metal Filter Elements is made up by metal powder, it can be customized by various materials and sizes, and can also be customized according to customer requirements.


Material:Titanium
Stainless steel: 316L, 304L, 310S, 321, 904L
Hastelloy C22 C276
Inconel 600
Monel 400
Nickel
Filtration rate: 0.1-100um
Dimension: Length: The longest seamless tube is 1600mm
Diameter: 4-450mm
Connection:Thread, flange, flat pressing, quick connection


The sintered porous metal filter has the following advantages:
Uniform pore size: Defined filtration by exact pore size distribution
High-temperature resistance: Thermal stability up to 950°C
Chemical stability: High corrosion resistance
No particle shedding: Shape stability by self-supporting structure
It can be cleaned online: Filters can be back flushed and cleaned easily
Non-magnetic and non-toxic: High permeability and low Dp
Suitable for high differential pressures
Welding and machining are possible

Application:
Filtration and recovery of catalysts in chemical, pharmaceutical, and other fields
High-temperature gas dust removal and filtration
High temperature and corrosive filtration process
Material vacuum conveying
Fermentation tank aeration
